After winding my first coil by hand with an electric drill I learned a few things: battery powered drills go flat at the worst times, polyurethane enamel is the enemy, and speed control matters.

I also attempted, perhaps naively, to drive a NEMA-17 stepper motor using an A4988 driver. It was lacking in capability to say the least. The TB6600-4.0 is a significant upgrade.

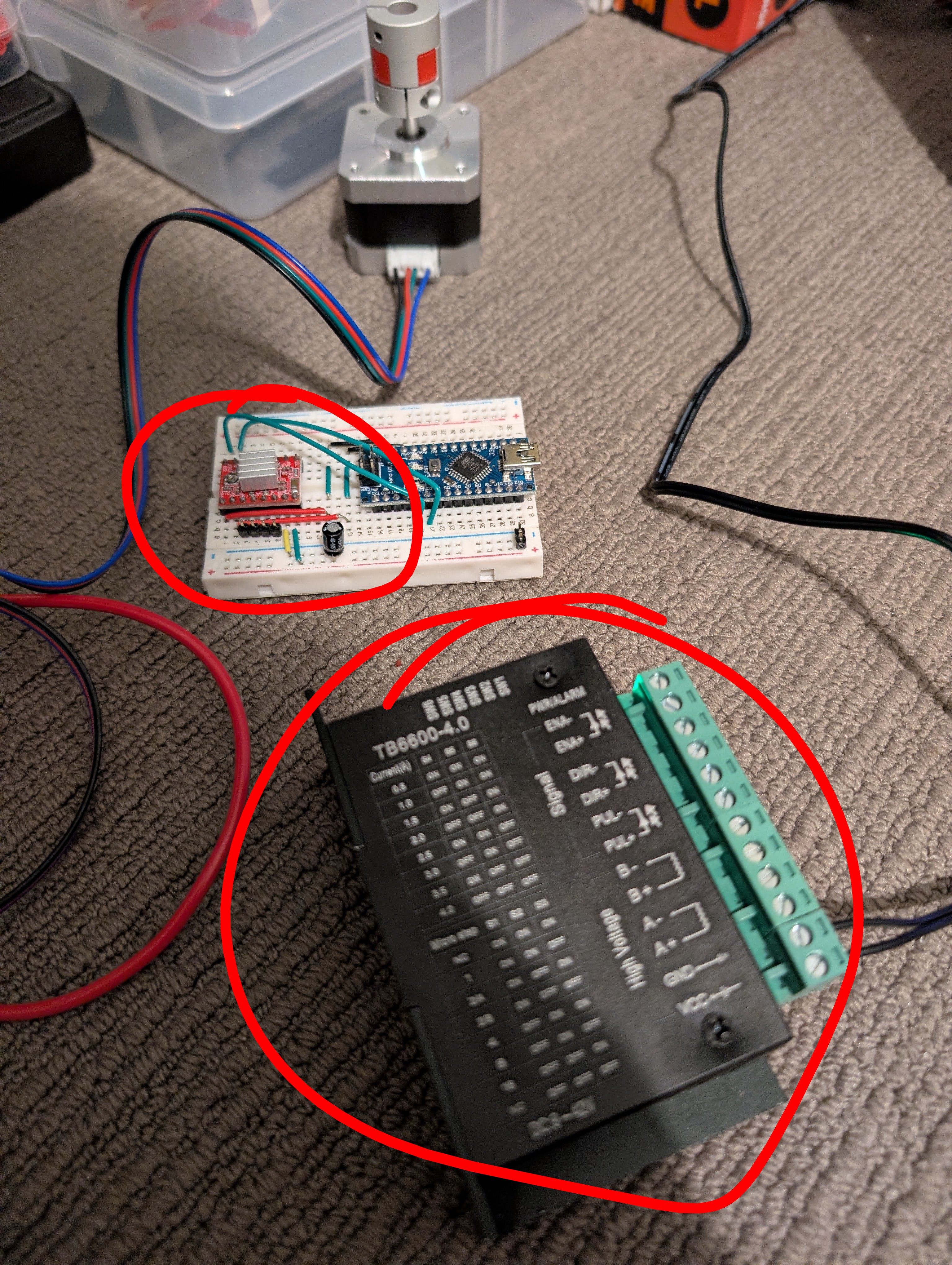

A4988 vs TB6600-4.0	First light - NEMA 17 running

Parts List

Component	Jaycar Part	Price
10kΩ Linear Pot	RP7510	$3.95
Pot Knob	HK7762	$2.75
DPDT Centre-Off Toggle (Direction)	ST0576	$5.95
Red LED Illuminated Switch (Power)	SP0706	$6.95
SPST Rocker Switch (Momentary)	SK0962	$2.95
9 Core Cable	TBD	~$2/m

Total: ~$22.55 (plus cable)

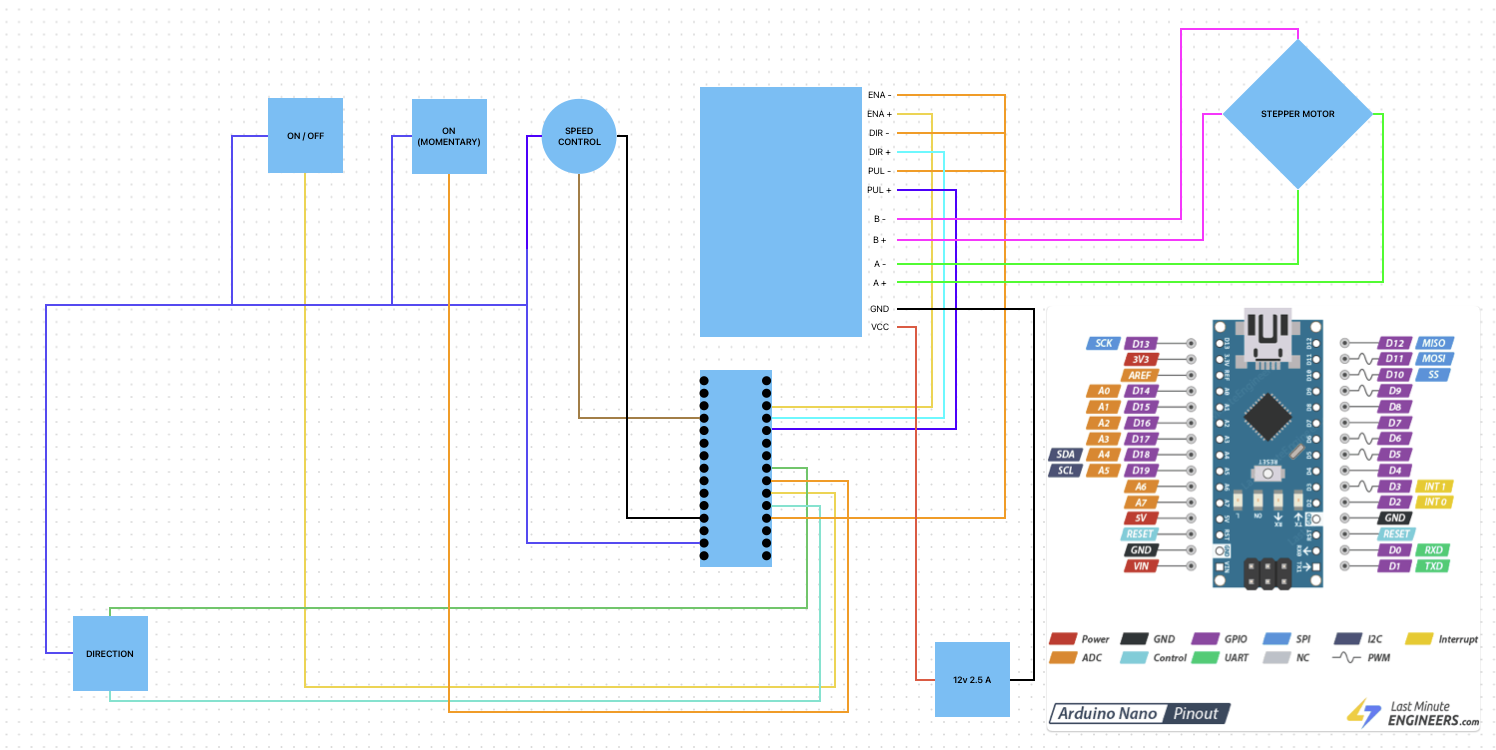

Wiring

9 Core Cable Connections

The control box connects to the Arduino via 9 core cable. Wire colours are dictated by what’s available in the cable.

Control Box End:

Wire	Component	Terminal
Brown	Potentiometer	Wiper (middle)
Black	Potentiometer	Right pin
Blue	Potentiometer + all switches	Left pin / commons (GND)
White	DPDT toggle	Left position (1A + 2A jumpered)
Green	DPDT toggle	Right position (1B + 2B jumpered)
Yellow	Power switch	NO terminal
Orange	Momentary button	Either terminal
Red	Spare	-
Gray	Spare	-

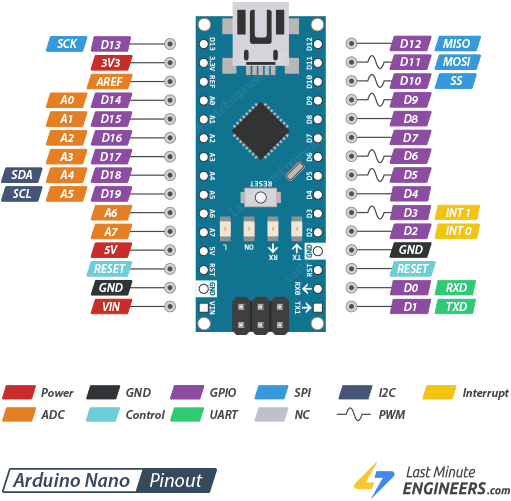

Arduino End:

Pin	Wire / Connection	Function
A0	Brown	Speed signal
5V	Black	Pot supply
GND	Blue	Common ground
D2	White	Direction CW (INPUT_PULLUP)
D3	Yellow	Power on/off (INPUT_PULLUP)
D4	Orange	Momentary start (INPUT_PULLUP)
D5	Green	Direction CCW (INPUT_PULLUP)
D8	TB6600 PUL+	Step pulse
D9	TB6600 DIR+	Direction
D10	TB6600 ENA+	Enable
D11	LED (optional)	Power indicator
D12	LED (optional)	Run indicator
D13	LED (optional)	Direction indicator

TB6600-4.0 Connections

Terminal	Connection
ENA-	GND
ENA+	Arduino D10
DIR-	GND
DIR+	Arduino D9
PUL-	GND
PUL+	Arduino D8
A+	Stepper coil A+
A-	Stepper coil A-
B+	Stepper coil B+
B-	Stepper coil B-
VCC	Power supply + (12-24V)
GND	Power supply -

Control Box Wiring Detail

Potentiometer (RP7510):

• Left pin → Blue (GND)
• Middle pin (wiper) → Brown (A0)
• Right pin → Black (5V)

DPDT Centre-Off Toggle (ST0576):

The switch has 6 terminals in two rows:

Row 1: [1A] [Centre 1] [1B]
Row 2: [2A] [Centre 2] [2B]

• Centre 1 + Centre 2 → jumper together → Blue (GND)
• 1A + 2A → jumper together → White (D2)
• 1B + 2B → jumper together → Green (D5)

Logic: Toggle left pulls White to GND (D2 LOW = CW). Toggle right pulls Green to GND (D5 LOW = CCW). Centre position = both pins HIGH = STOP.

Power Switch (SP0706):

• NO terminal → Yellow (D3)
• Common → Blue (GND)

Momentary Button (SK0962):

• One terminal → Orange (D4)
• Other terminal → Blue (GND)

Control Logic

Condition	Result
D2 LOW	CW direction selected
D5 LOW	CCW direction selected
Both D2 & D5 HIGH	Centre-off = STOP
D3 LOW or D4 LOW	Motor enabled
Pot → A0	Maps 0-1023 to 500µs-10ms step delay

Motor runs when: (power OR momentary pressed) AND (direction selected)

Arduino Code

/*!
 * @file  coil_winding_controller.ino
 * @brief TB6600 stepper driver with manual controls for Tesla coil winding
 * @version  V1.0
 * @date  2025-11-25
 */

// TB6600 driver pins
#define PUL_PIN  8
#define DIR_PIN  9
#define ENA_PIN  10

// Control inputs (all INPUT_PULLUP)
#define POT_PIN       A0
#define DIR_CW        2
#define DIR_CCW       5
#define POWER_SWITCH  3
#define MOMENTARY_BTN 4

// Optional indicators
#define LED_POWER  11
#define LED_RUN    12
#define LED_DIR    13

void setup() {
  pinMode(PUL_PIN, OUTPUT);
  pinMode(DIR_PIN, OUTPUT);
  pinMode(ENA_PIN, OUTPUT);

  pinMode(DIR_CW, INPUT_PULLUP);
  pinMode(DIR_CCW, INPUT_PULLUP);
  pinMode(POWER_SWITCH, INPUT_PULLUP);
  pinMode(MOMENTARY_BTN, INPUT_PULLUP);

  pinMode(LED_POWER, OUTPUT);
  pinMode(LED_RUN, OUTPUT);
  pinMode(LED_DIR, OUTPUT);

  digitalWrite(ENA_PIN, LOW);
  digitalWrite(PUL_PIN, LOW);
  digitalWrite(LED_POWER, HIGH);
}

void loop() {
  bool dirCW = (digitalRead(DIR_CW) == LOW);
  bool dirCCW = (digitalRead(DIR_CCW) == LOW);
  bool powerOn = (digitalRead(POWER_SWITCH) == LOW);
  bool momentaryOn = (digitalRead(MOMENTARY_BTN) == LOW);

  bool motorShouldRun = (powerOn || momentaryOn) && (dirCW || dirCCW);

  if (motorShouldRun) {
    int potValue = analogRead(POT_PIN);
    int stepDelay = map(potValue, 0, 1023, 500, 10000);

    digitalWrite(ENA_PIN, HIGH);

    if (dirCW) {
      digitalWrite(DIR_PIN, LOW);
      digitalWrite(LED_DIR, LOW);
    } else {
      digitalWrite(DIR_PIN, HIGH);
      digitalWrite(LED_DIR, HIGH);
    }

    digitalWrite(PUL_PIN, HIGH);
    delayMicroseconds(stepDelay);
    digitalWrite(PUL_PIN, LOW);
    delayMicroseconds(stepDelay);

    digitalWrite(LED_RUN, HIGH);

  } else {
    digitalWrite(ENA_PIN, LOW);
    digitalWrite(LED_RUN, LOW);
  }
}

I am thinking the next step will be to utilise a buck converter to step the 12v stepper power supply down to 5v to power the Arduino nano
